J-1200x2400
Corrugated Underside Printer

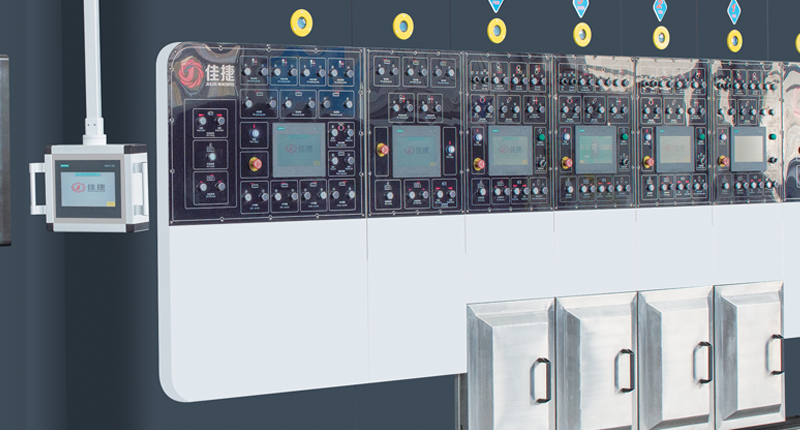

1.The ground rail (track) is made of GB gray cast iron HT200, and normalized heat treatment after finishing. 2.The wall plate used in the machine body is made of GB:Y15 steel and heat-treated with machining center. 3.All main transmission gears are made of GB:20CrMoTi alloy steel, and the grinding teeth are processed by heat treatment and carburization after fine grinding, and the accuracy is up to grade 6 precision. 4.All transmission shafts are made of No. 45 steel and heattreated and dynamic balance correction. 5.The main drive bearings are imported bearings (Japan: NSK; or Germany: FAG). 6.The whole machine electrical components: PLC; touch screen and others adopts Siemens products. 7.The machine has one key overprinting functions and wipe the board memory function.
Key features
Sheet Specification
-
FEATURE 1

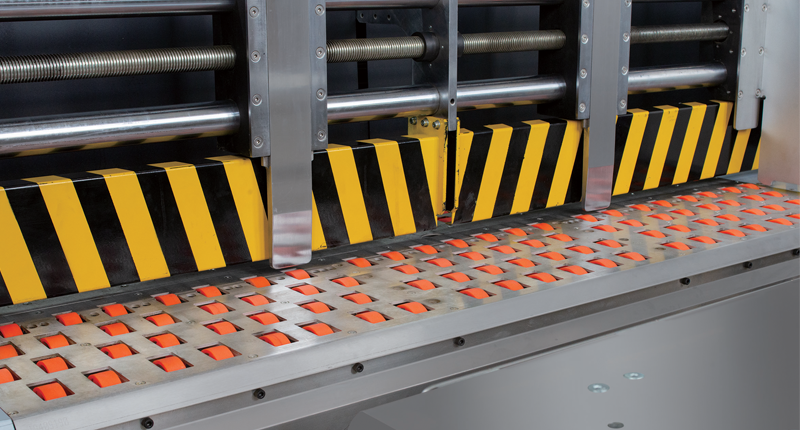

The printed paper is at the bottom, which is
convenient for automatic paper loading.
FEATURE 2
The ink of the bottom printer is at the bottom,
which is conducive to dust removal while printing products.
-
FEATURE 3
The die cutter is on the top of the cardboard,
which is convenient for product waste removal.
FEATURE 4
More suitable for thick paper printing, the bottom
support of the lower printer can withstand greater
weight and pressure to prevent the thick paper
from deforming during printing.
